analytical-figures

Publication-grade figures and the gated analysis behind them, for analytical chemistry. A Claude Code skill.

Hover a tile for what it is and where the data came from; click for full size.

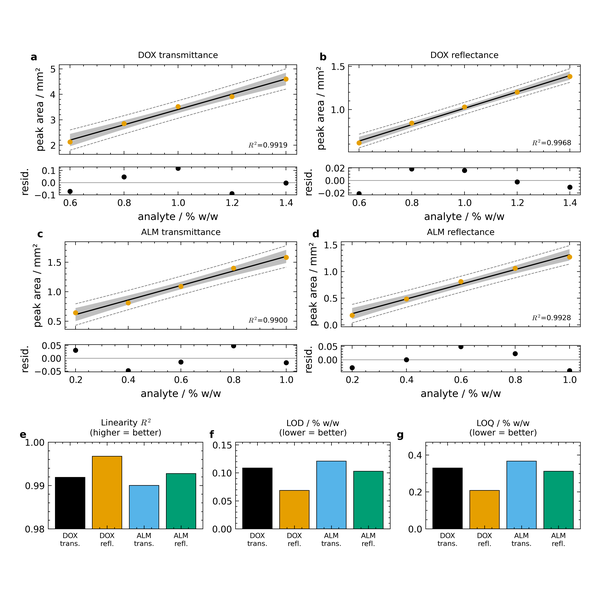

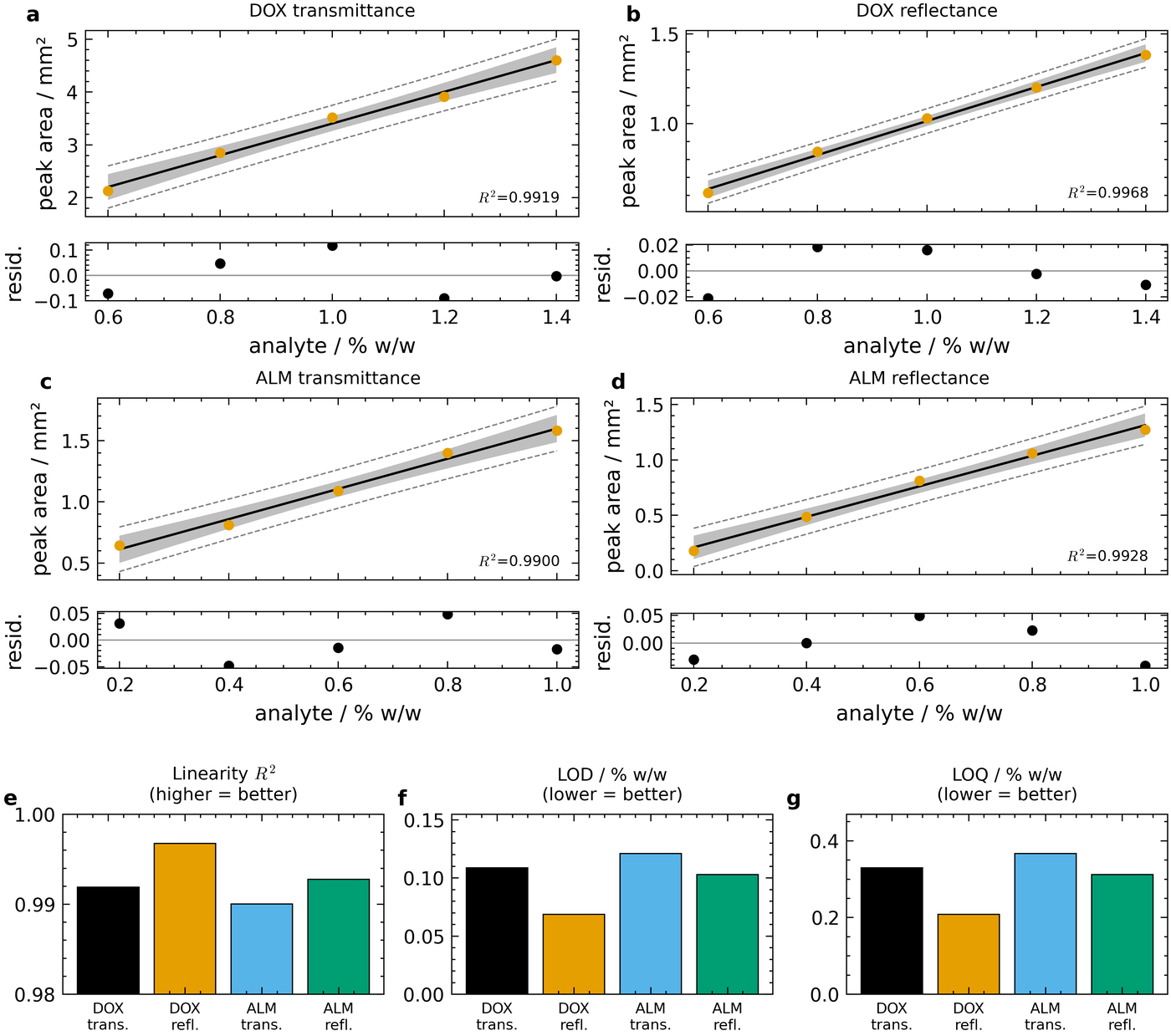

Method-comparison page figure: four calibrations, each over its own residual strip, and the figures of merit with the direction of good in every title

Method-comparison page figure: four calibrations, each over its own residual strip, and the figures of merit with the direction of good in every titleData: Bansal, Singh & Kaur 2021, BMC Chemistry 15:27, 10.1186/s13065-021-00752-3 (published peak-area tables)Made by docs/build_gallery.py → scripts/calibration.fit + lod_loq, style.panel_letter

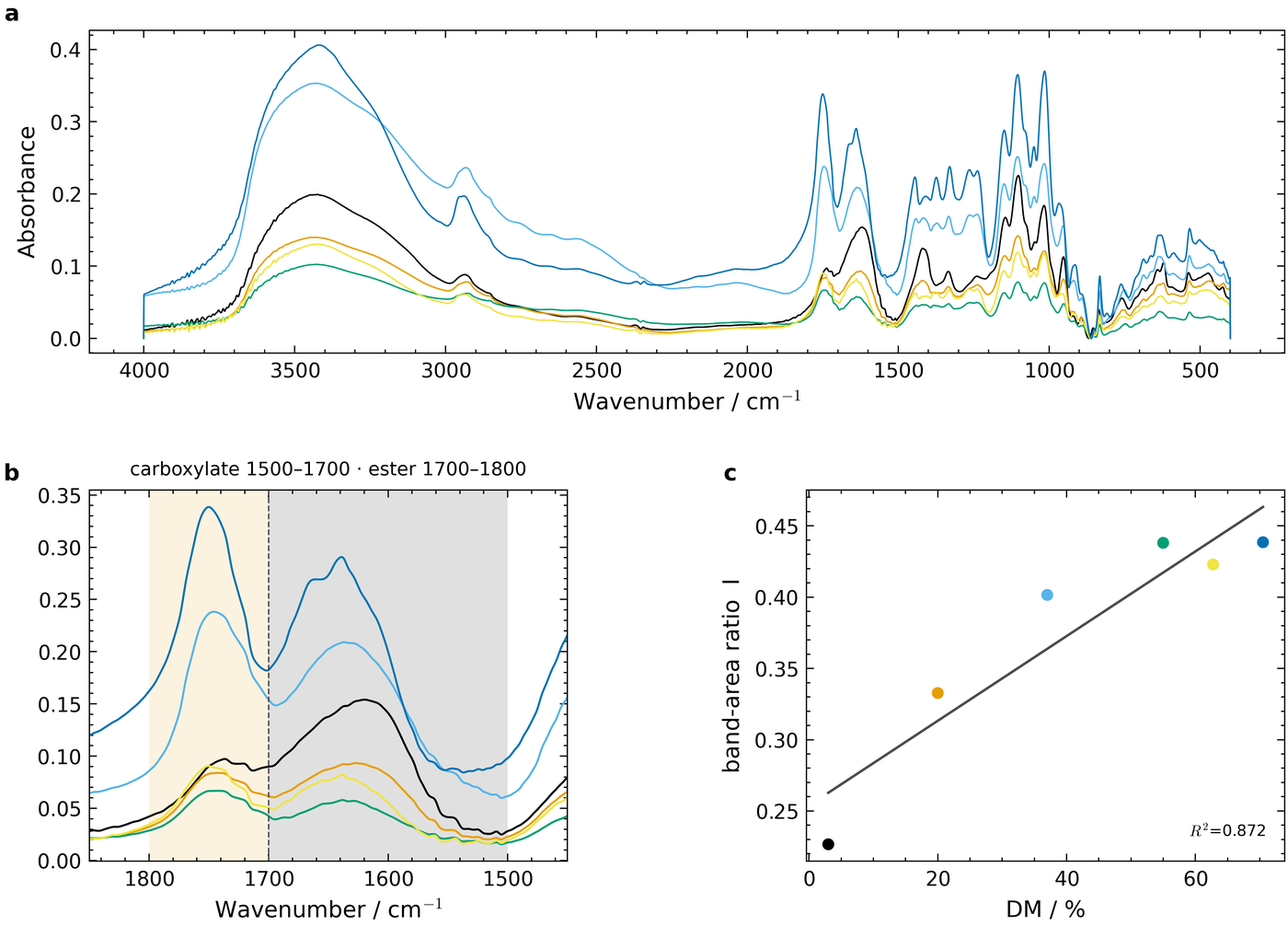

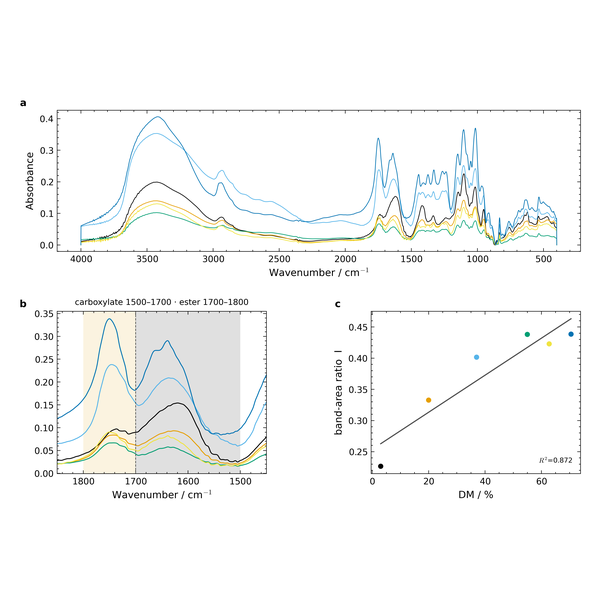

Specificity composite: the full spectra, the carbonyl window with both integration windows on one shared baseline, and the band-area ratio it yields against DM

Specificity composite: the full spectra, the carbonyl window with both integration windows on one shared baseline, and the band-area ratio it yields against DMData: Wang 2023 pectin ATR-FTIR spectra, Mendeley Data 10.17632/gkwbp3wc49.1 (CC BY 4.0)Made by docs/build_gallery.py → scripts/spectra.integrate_bands (shared baseline), calibration.fit

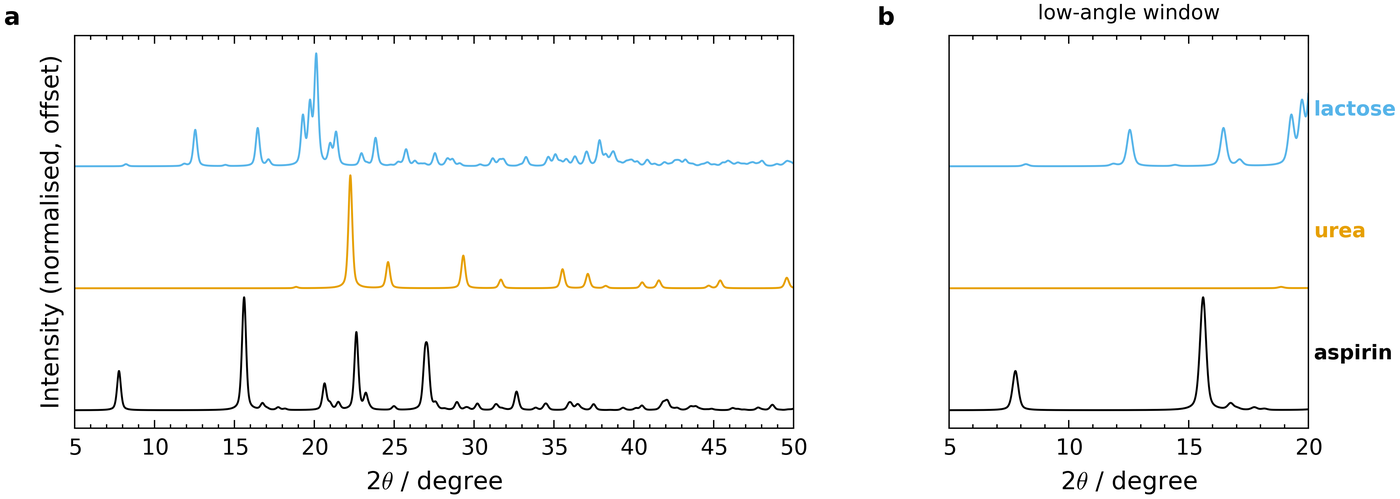

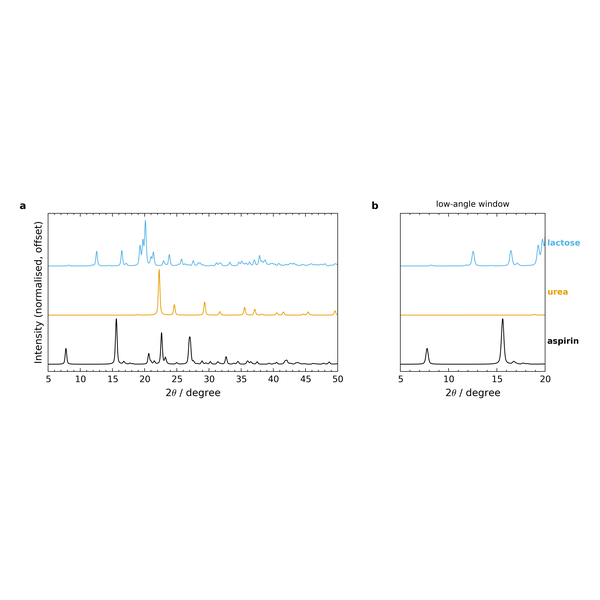

Phase-ID composite: stacked calculated patterns over the full range and the low-angle window, one right-margin key serving both panels

Phase-ID composite: stacked calculated patterns over the full range and the low-angle window, one right-margin key serving both panelsData: Aspirin COD 7247819, urea COD 1008785, lactose COD 2206486 (Crystallography Open Database)Made by docs/build_gallery.py → scripts/crystal_pxrd.calc_pattern, spectra.edge_labels

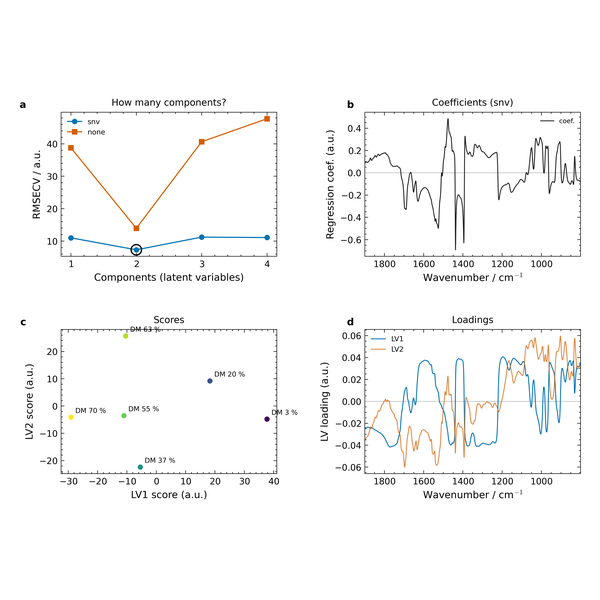

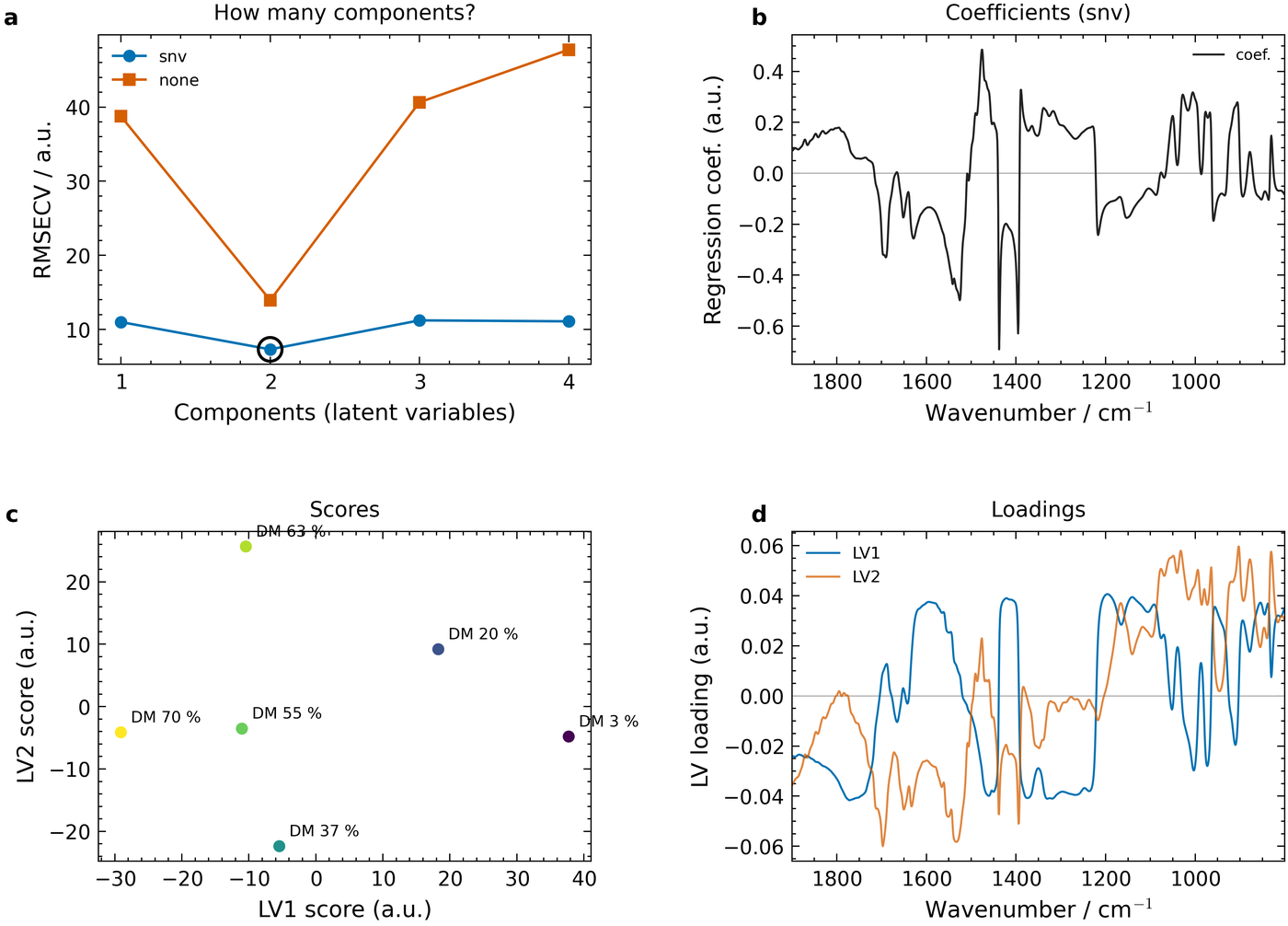

Leakage-safe PLS diagnostics on six real standards: RMSECV per preprocessing with the parsimony pick ringed, coefficients, scores, loadings

Leakage-safe PLS diagnostics on six real standards: RMSECV per preprocessing with the parsimony pick ringed, coefficients, scores, loadingsData: Wang 2023 pectin ATR-FTIR spectra, Mendeley Data 10.17632/gkwbp3wc49.1 (CC BY 4.0) — the six calibration standards, leave-one-outMade by docs/build_gallery.py → scripts/chemometrics.diagnostics_figure

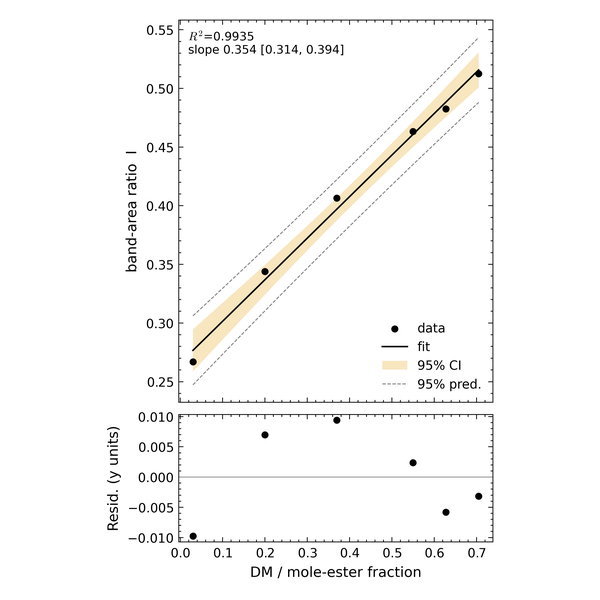

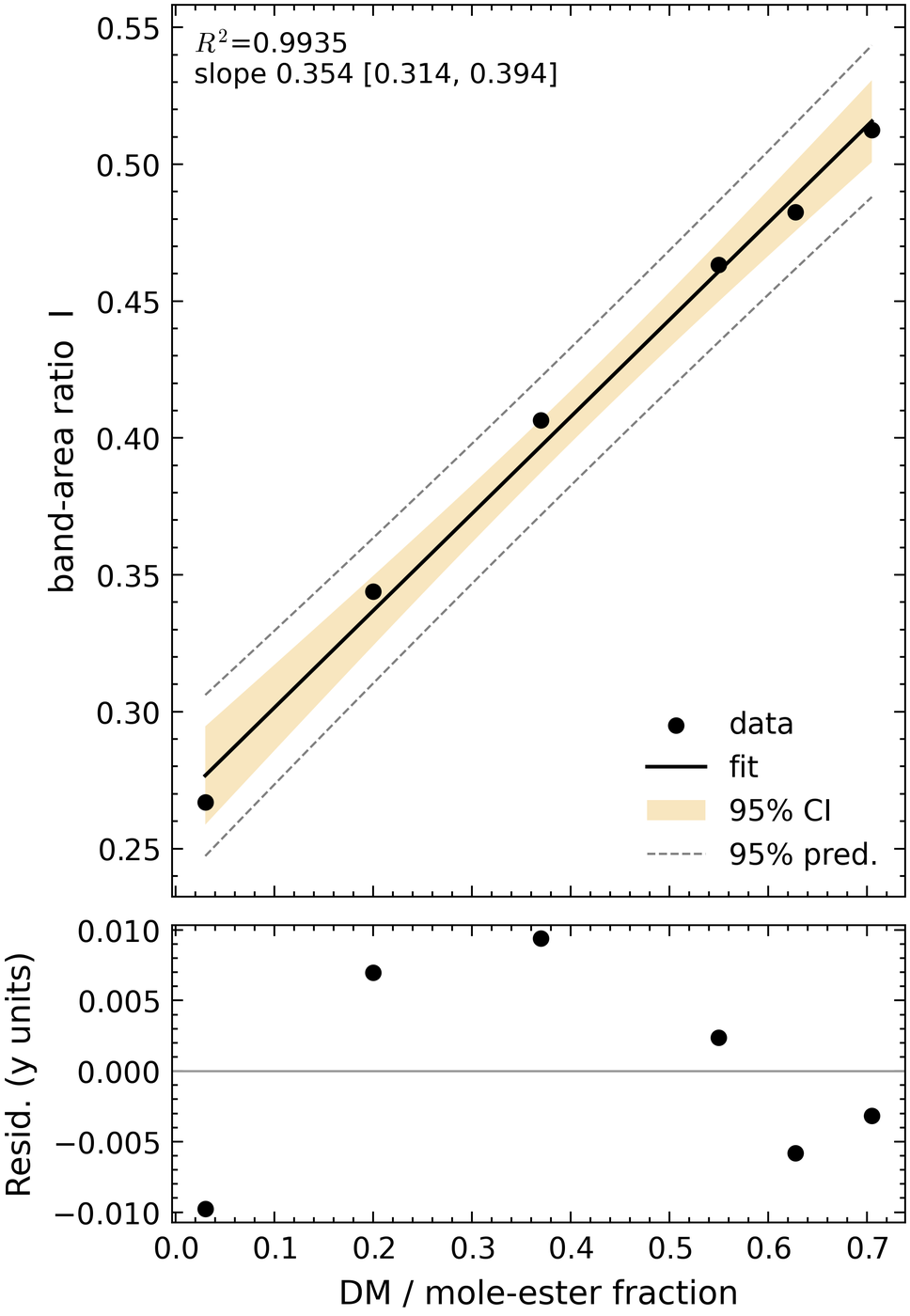

Calibration with confidence and prediction bands and the mandatory residual panel

Calibration with confidence and prediction bands and the mandatory residual panelData: Wang 2023 pectin ATR-FTIR spectra, Mendeley Data 10.17632/gkwbp3wc49.1 (CC BY 4.0) — the authors' published band areasMade by skill_validation/ftir_integration/validate_ftir_integration.py

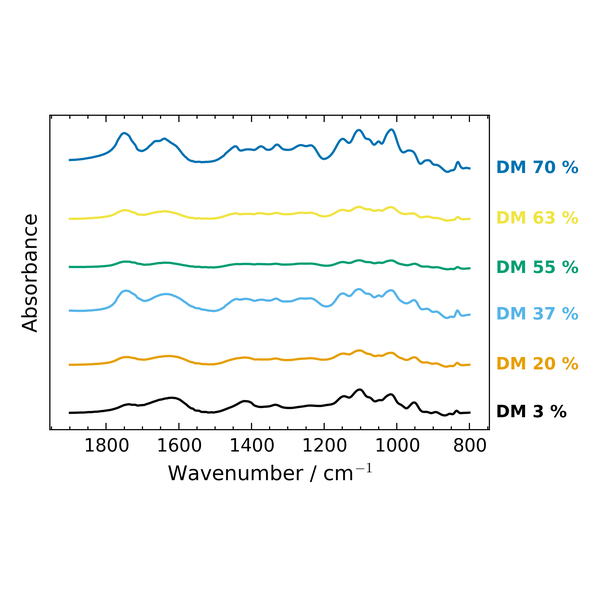

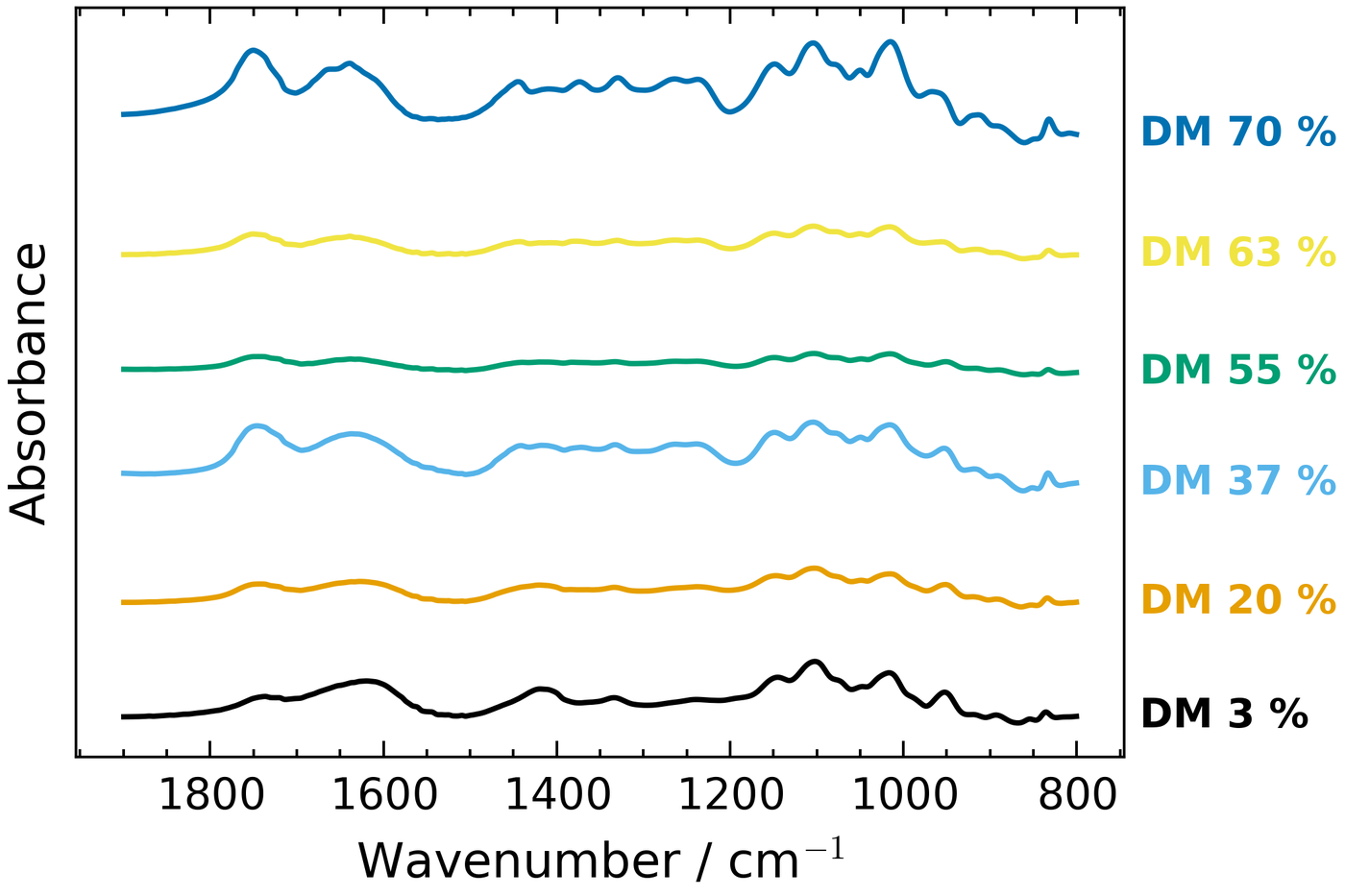

Waterfall of the six calibration standards, right-margin keys instead of a legend

Waterfall of the six calibration standards, right-margin keys instead of a legendData: Wang 2023 pectin ATR-FTIR spectra, Mendeley Data 10.17632/gkwbp3wc49.1 (CC BY 4.0)Made by docs/build_gallery.py → scripts/spectra.plot_waterfall

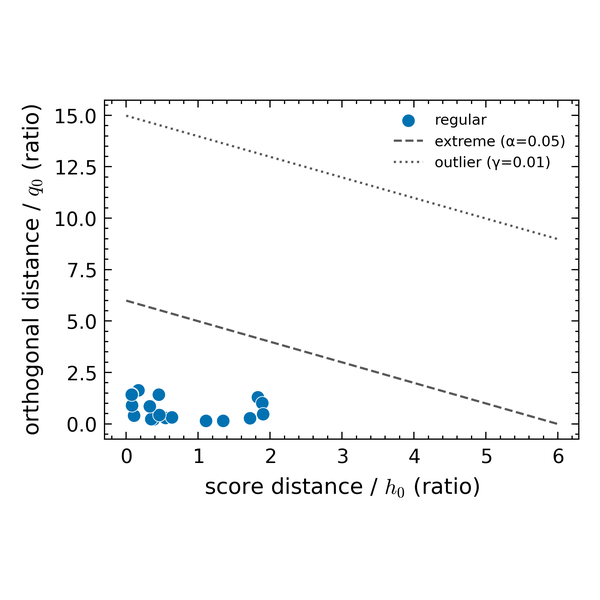

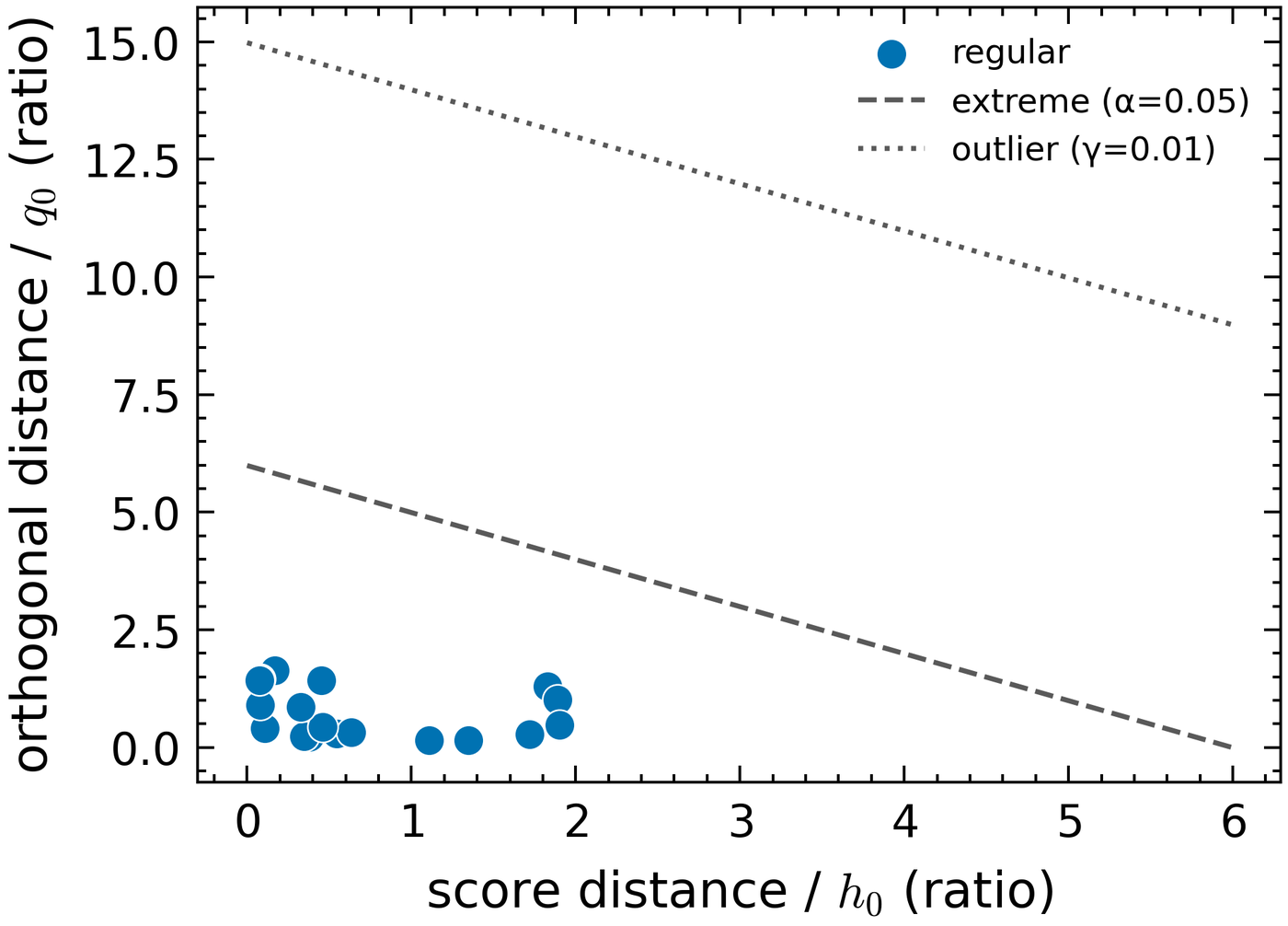

DD-SIMCA acceptance plot of eighteen replicate sample spectra: all inside the acceptance boundary, the extreme and outlier limits drawn

DD-SIMCA acceptance plot of eighteen replicate sample spectra: all inside the acceptance boundary, the extreme and outlier limits drawnData: Wang 2023 pectin ATR-FTIR spectra, Mendeley Data 10.17632/gkwbp3wc49.1 (CC BY 4.0) — the eighteen sample spectra (6 preparations × 3 replicates), SNV, 2 PCsMade by docs/build_gallery.py → scripts/chemometrics.diagnostics + plot_influence

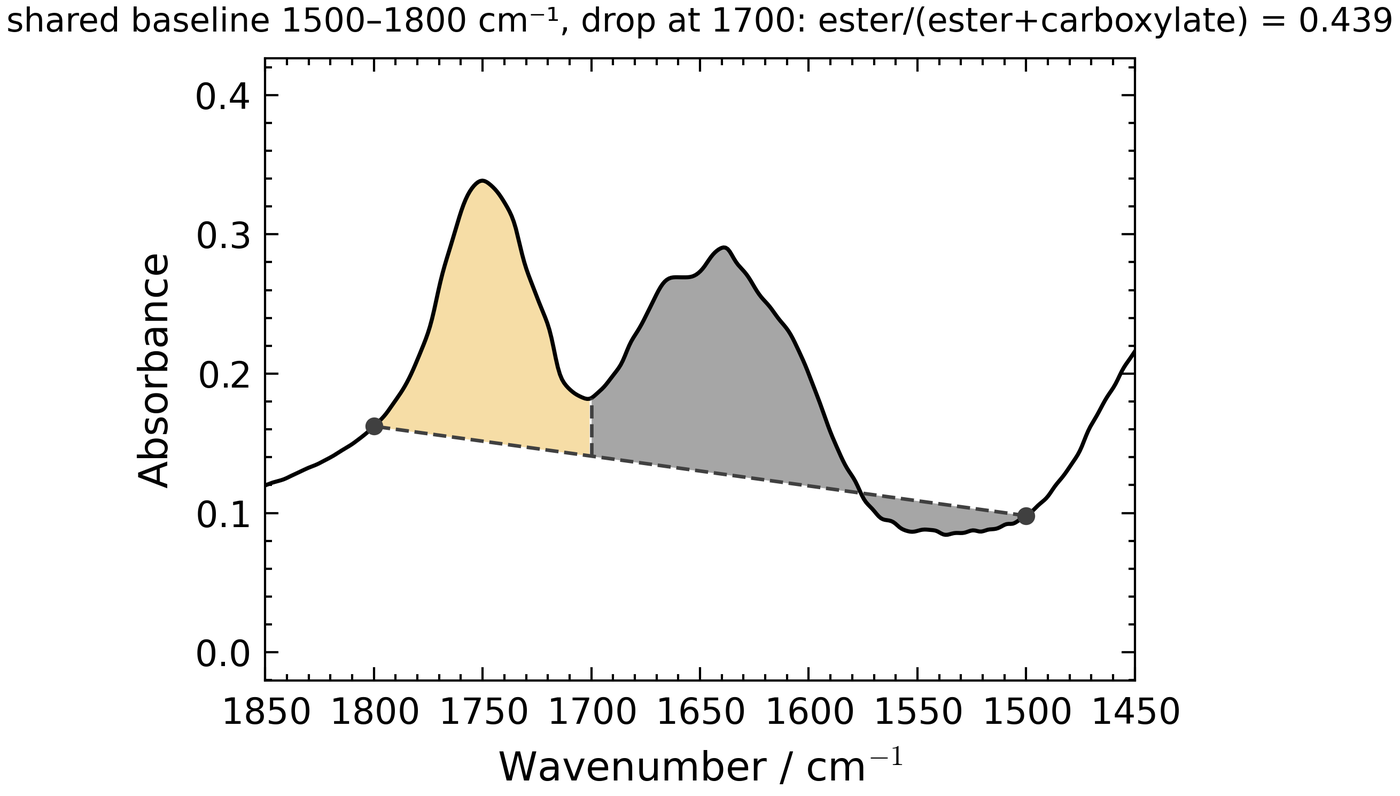

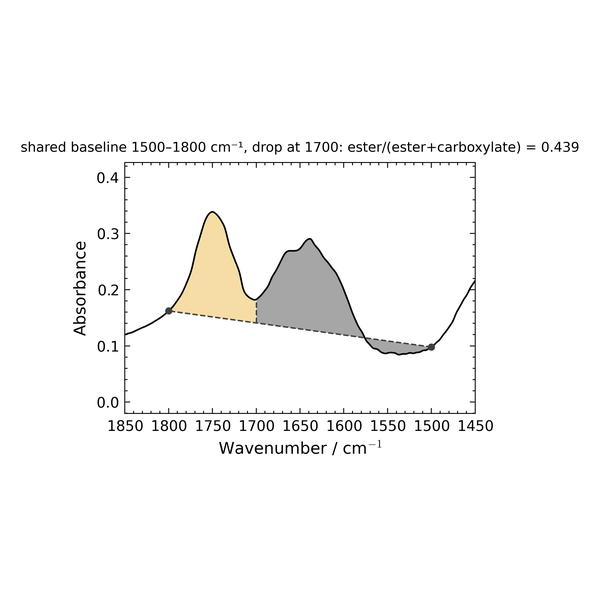

Two overlapping bands on one shared baseline with the vertical drop at the window boundary — the drop-perpendicular method the validation showed is required

Two overlapping bands on one shared baseline with the vertical drop at the window boundary — the drop-perpendicular method the validation showed is requiredData: Wang 2023 pectin ATR-FTIR spectra, Mendeley Data 10.17632/gkwbp3wc49.1 (CC BY 4.0) — the DM 70.5 % standardMade by docs/build_gallery.py → scripts/spectra.integrate_bands

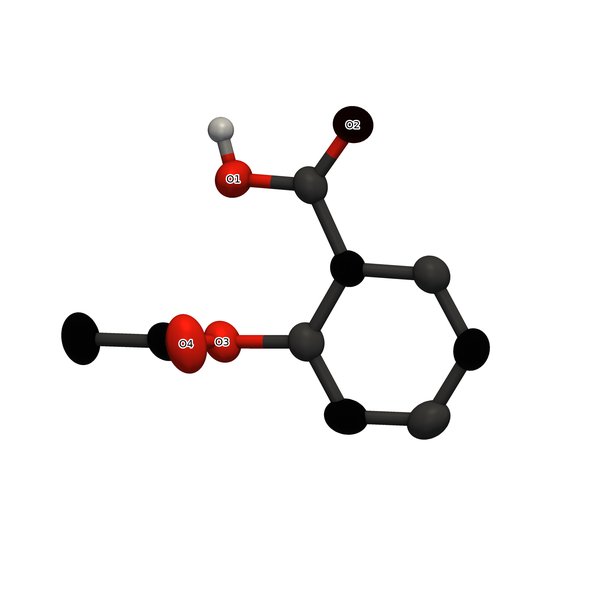

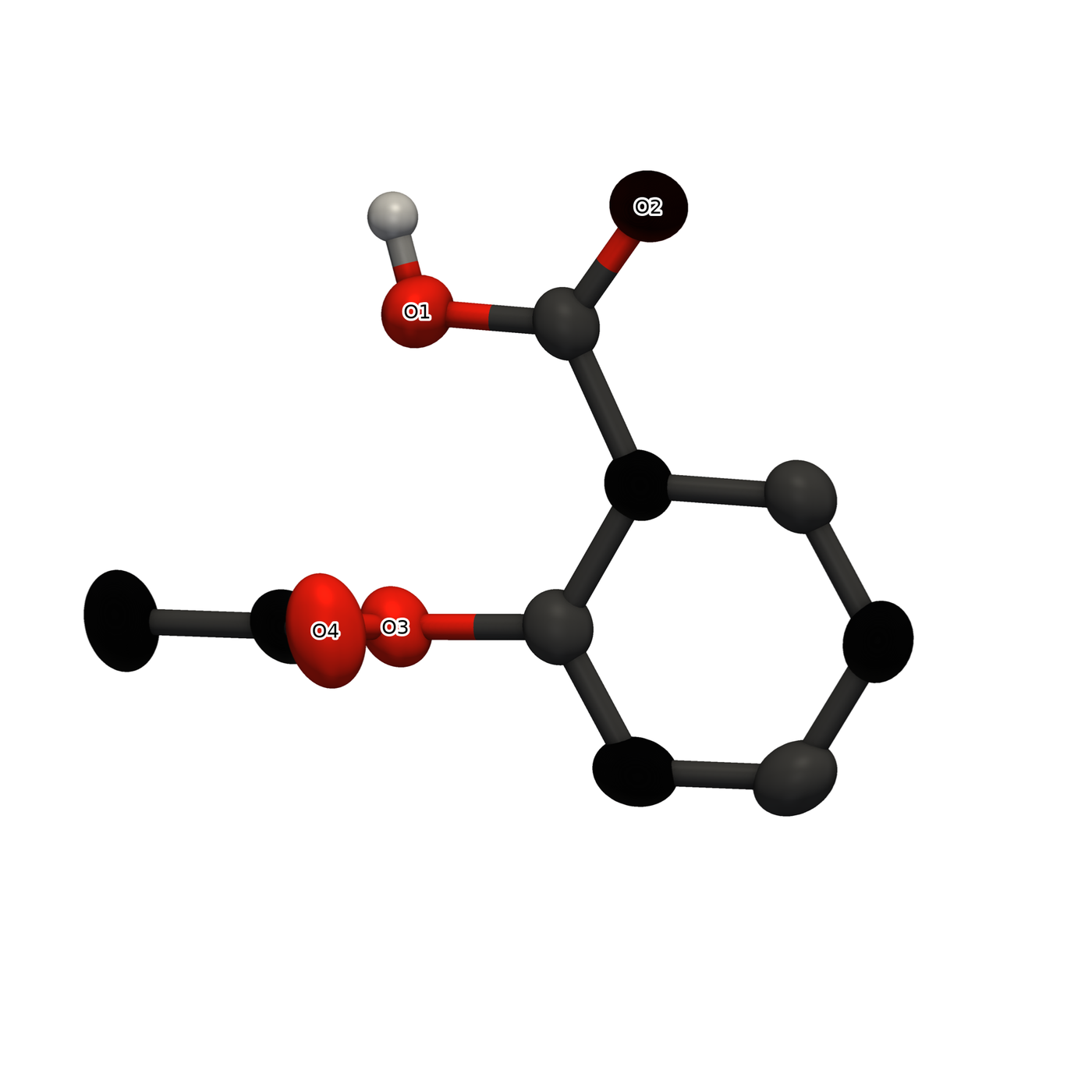

ORTEP displacement ellipsoids at 50 % probability, deterministic PCA camera

ORTEP displacement ellipsoids at 50 % probability, deterministic PCA cameraData: Aspirin, COD 7247819 (296 K)Made by skill_validation/crystal/crystal_demo.py

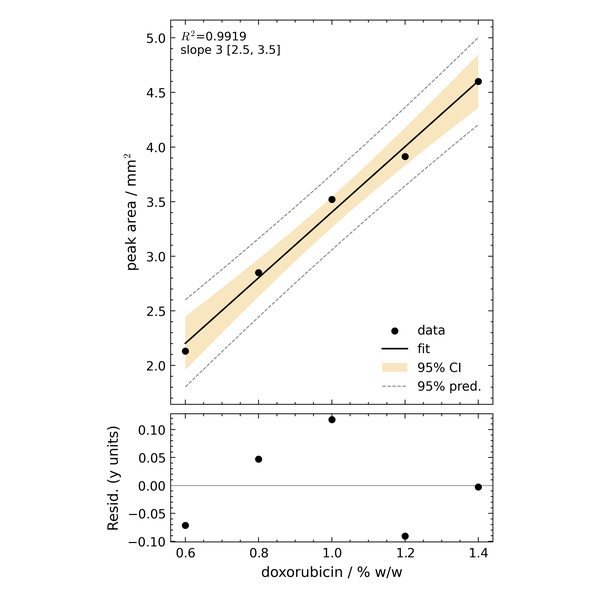

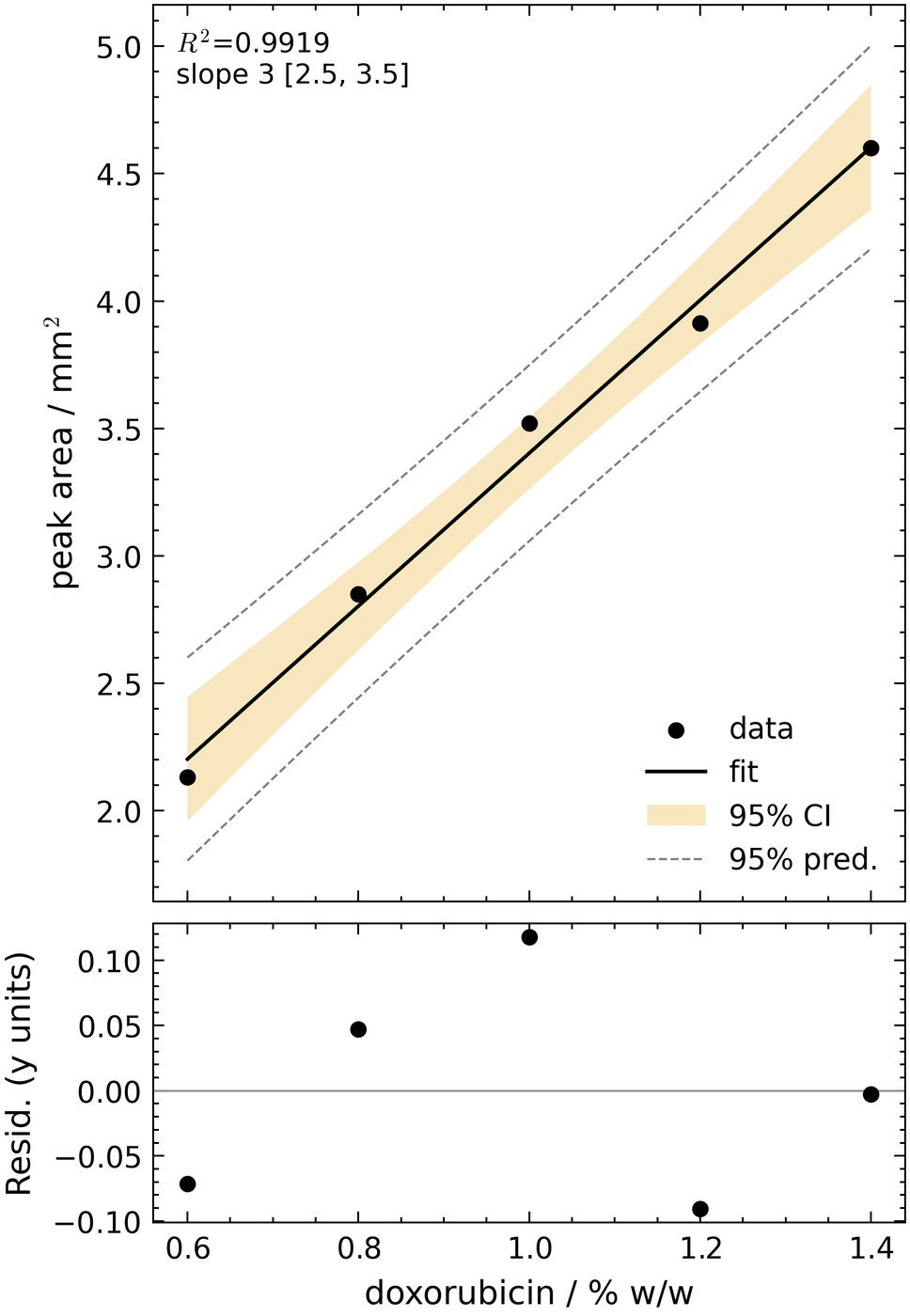

Doxorubicin carbonyl-area calibration; LOD/LOQ from the residual SD, and the sigma is named

Doxorubicin carbonyl-area calibration; LOD/LOQ from the residual SD, and the sigma is namedData: Bansal, Singh & Kaur 2021, BMC Chemistry 15:27, 10.1186/s13065-021-00752-3 (published peak-area tables)Made by skill_validation/ftir_integration/validate_ftir_integration.py

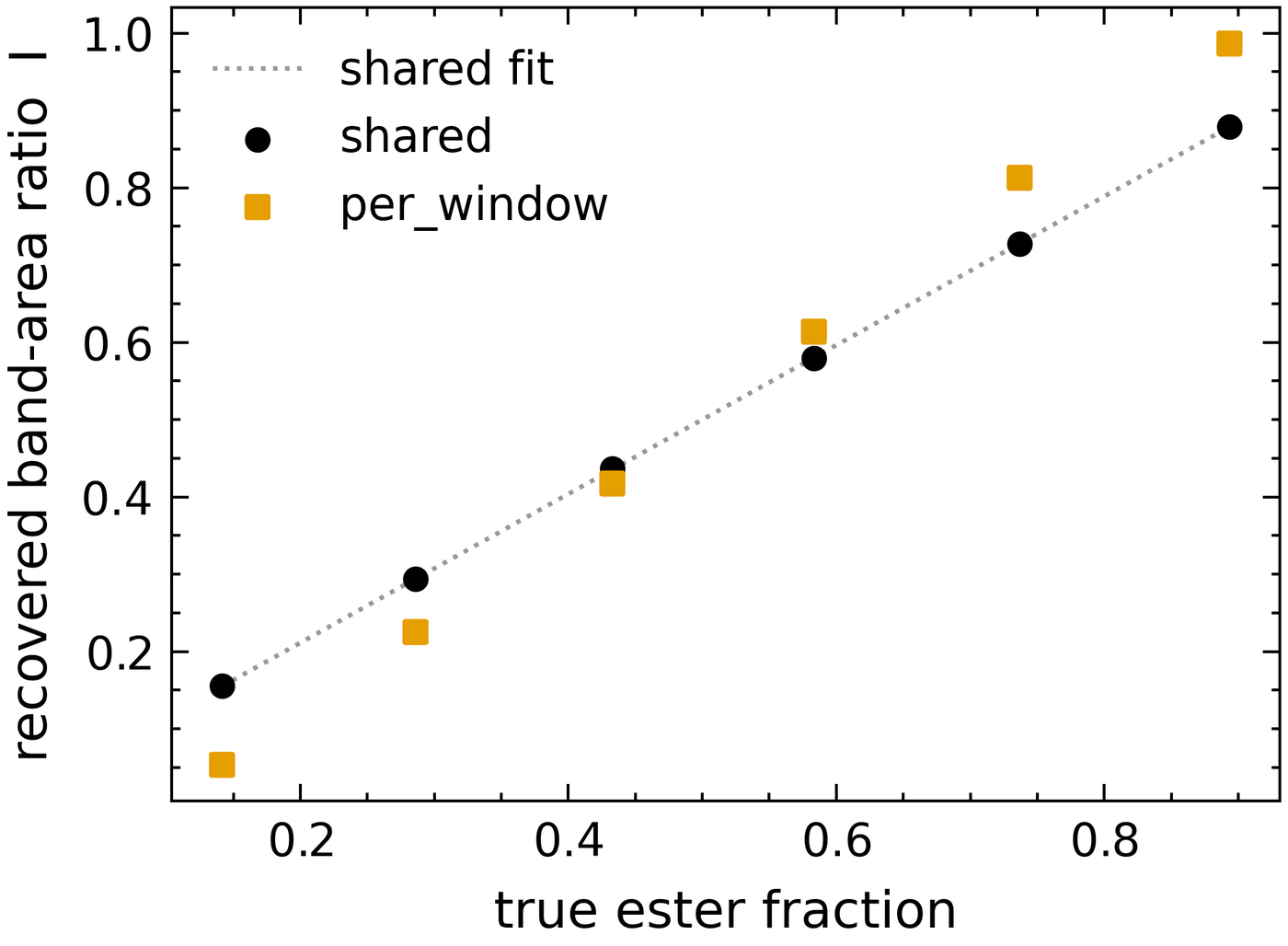

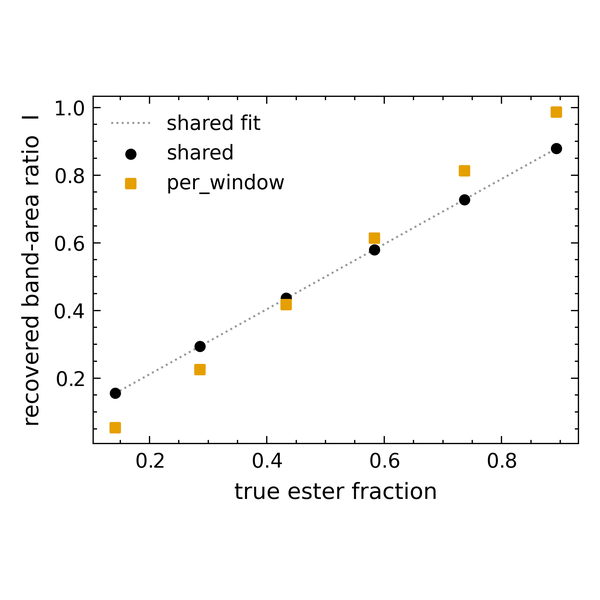

Shared vs per-window baseline against a closed-form answer: the per-window pedestal bias, measured

Shared vs per-window baseline against a closed-form answer: the per-window pedestal bias, measuredData: Analytic Gaussian bands with known areas, checked against scipy.integrate.quadMade by skill_validation/ftir_integration/groundtruth_integration_test.py

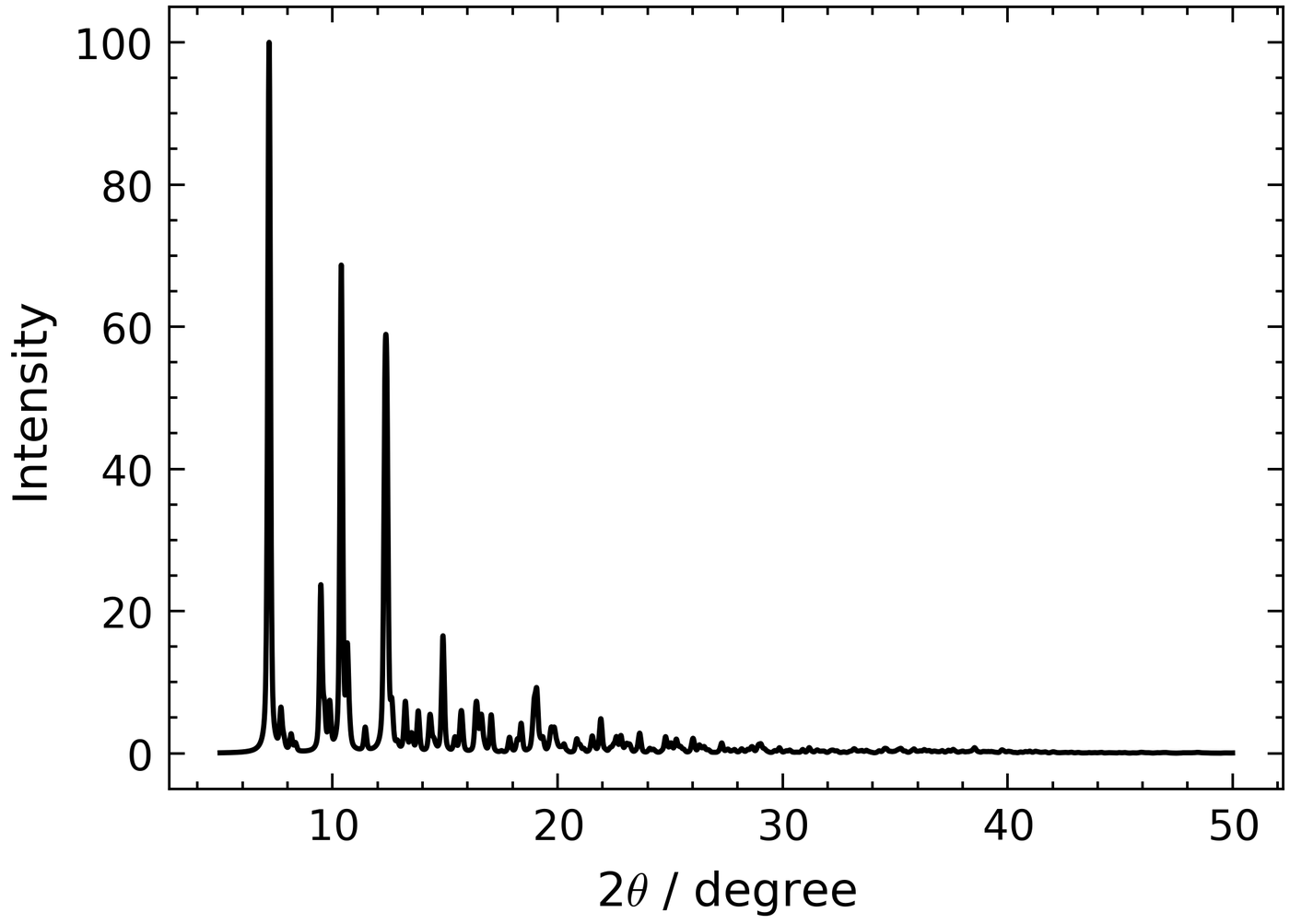

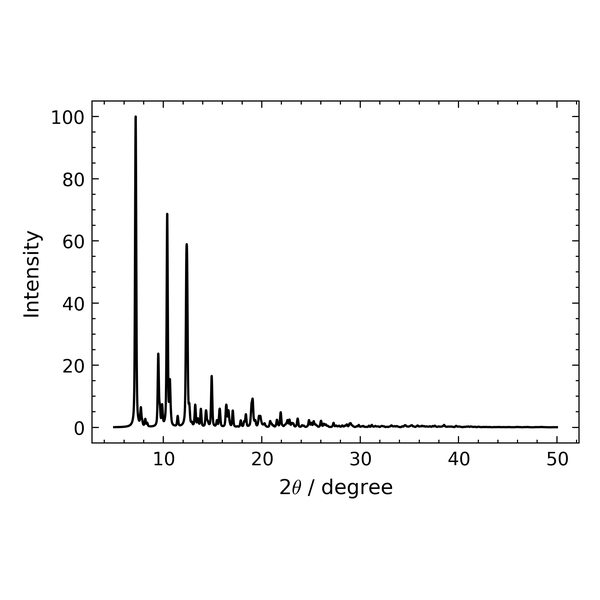

Calculated PXRD from a CIF at Cu Kα, top peak cross-checked against pymatgen

Calculated PXRD from a CIF at Cu Kα, top peak cross-checked against pymatgenData: Aspirin, COD 7247819Made by skill_validation/crystal/crystal_demo.py

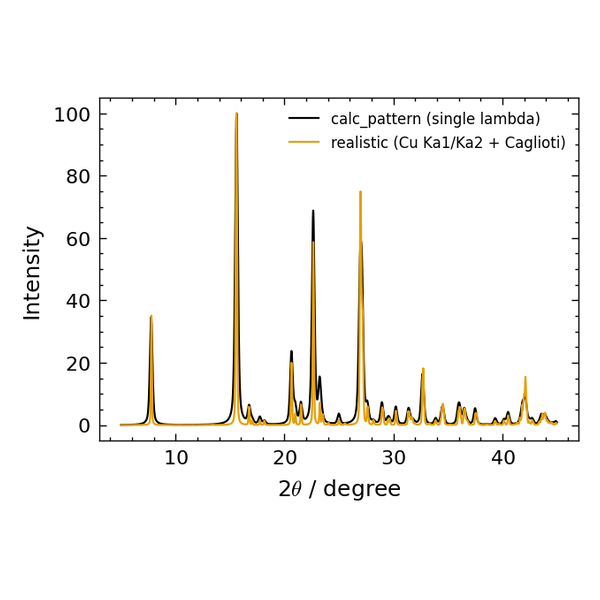

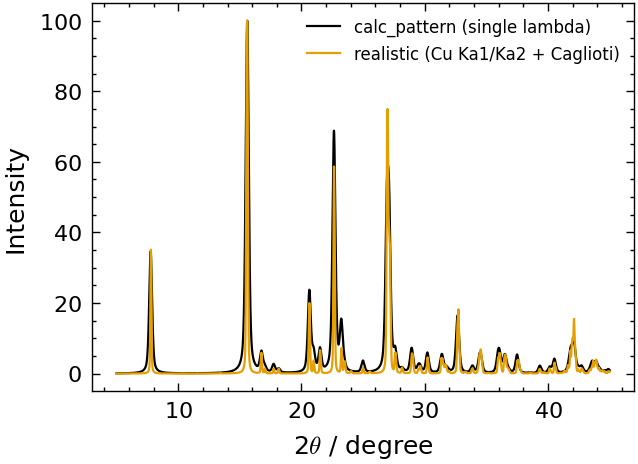

Lab-realistic pattern: Cu Kα₁/Kα₂ doublet and Caglioti broadening on the Dans reflection list

Lab-realistic pattern: Cu Kα₁/Kα₂ doublet and Caglioti broadening on the Dans reflection listData: Aspirin, COD 7247819Made by skill_validation/crystal/test_realism_cif.py

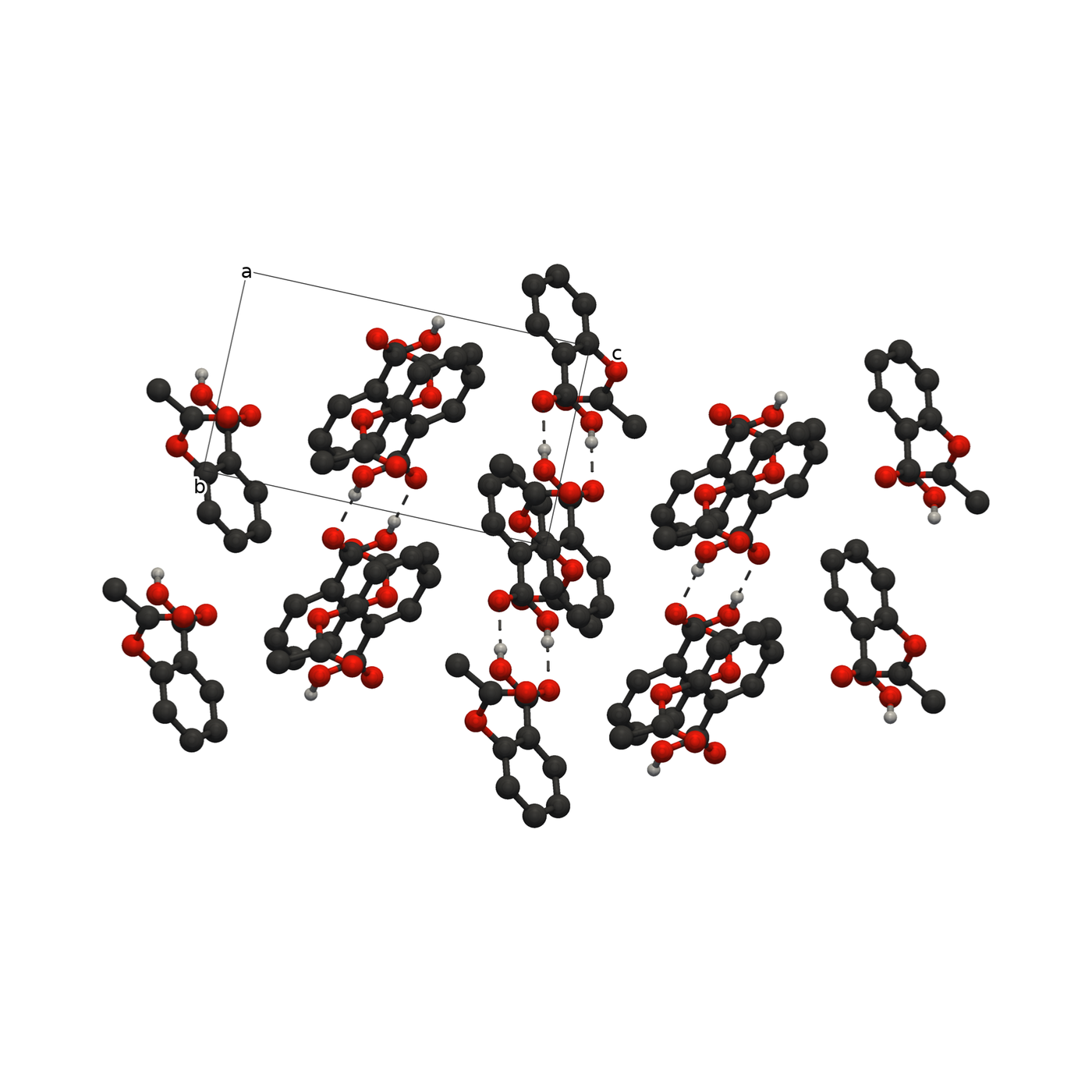

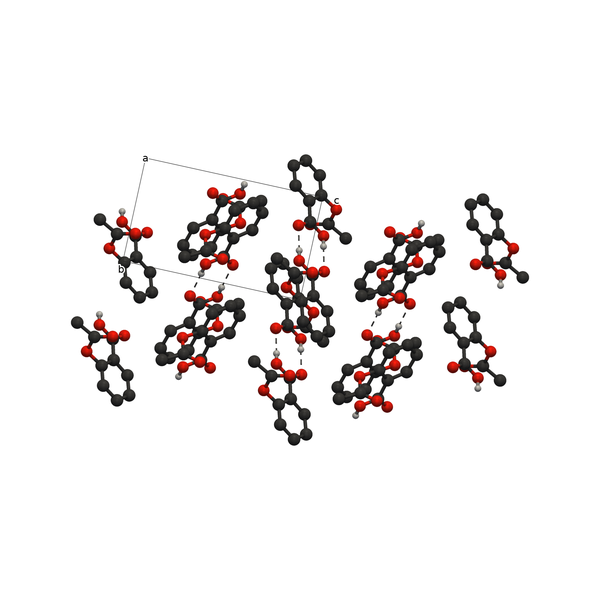

Packing diagram down a with hydrogen bonds and the cell box

Packing diagram down a with hydrogen bonds and the cell boxData: Aspirin, COD 7247819Made by skill_validation/crystal/crystal_demo.py

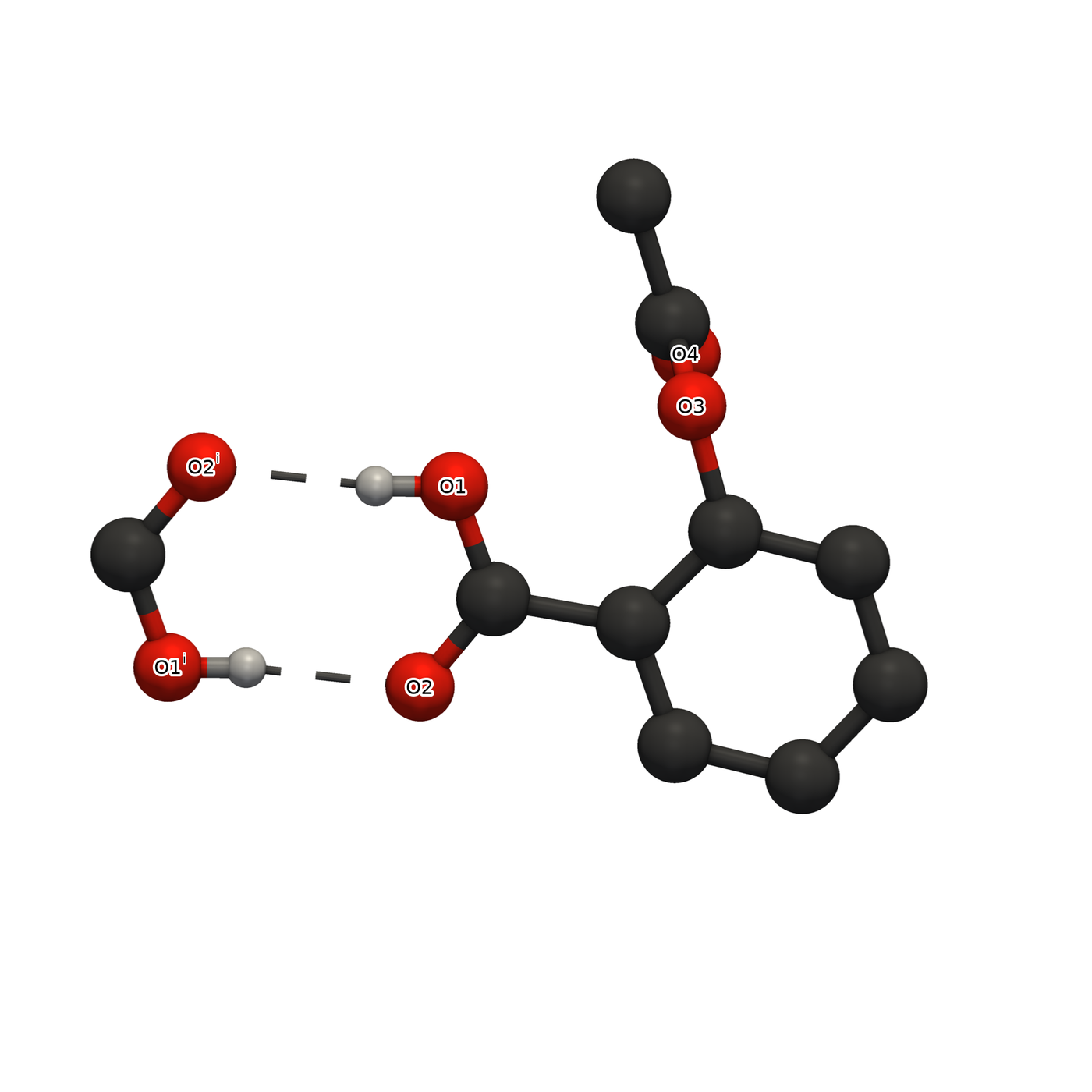

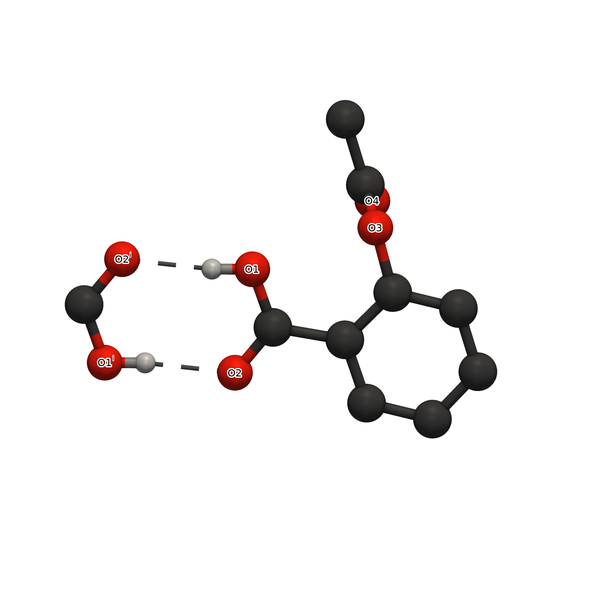

Hydrogen-bond environment of the asymmetric unit, symmetry mates superscripted

Hydrogen-bond environment of the asymmetric unit, symmetry mates superscriptedData: Aspirin, COD 7247819Made by skill_validation/crystal/crystal_demo.py

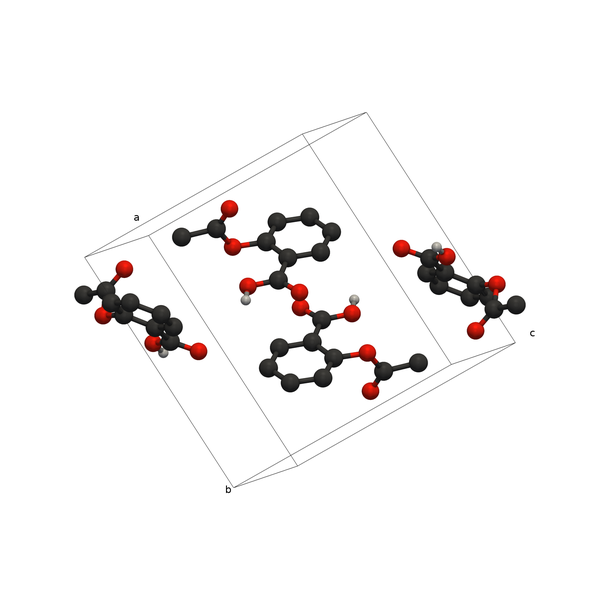

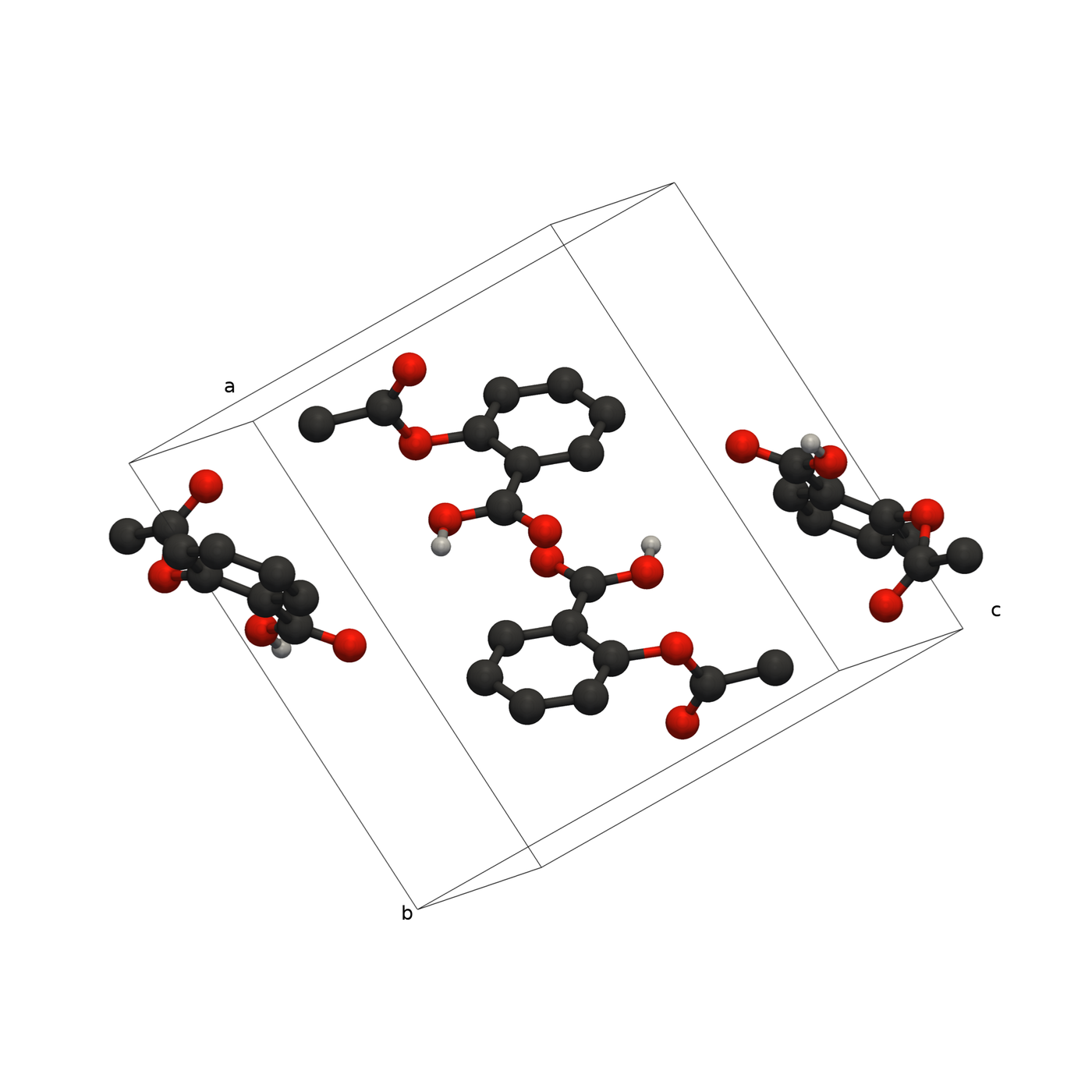

Unit-cell contents with the cell box and a/b/c

Unit-cell contents with the cell box and a/b/cData: Aspirin, COD 7247819Made by skill_validation/crystal/crystal_demo.py

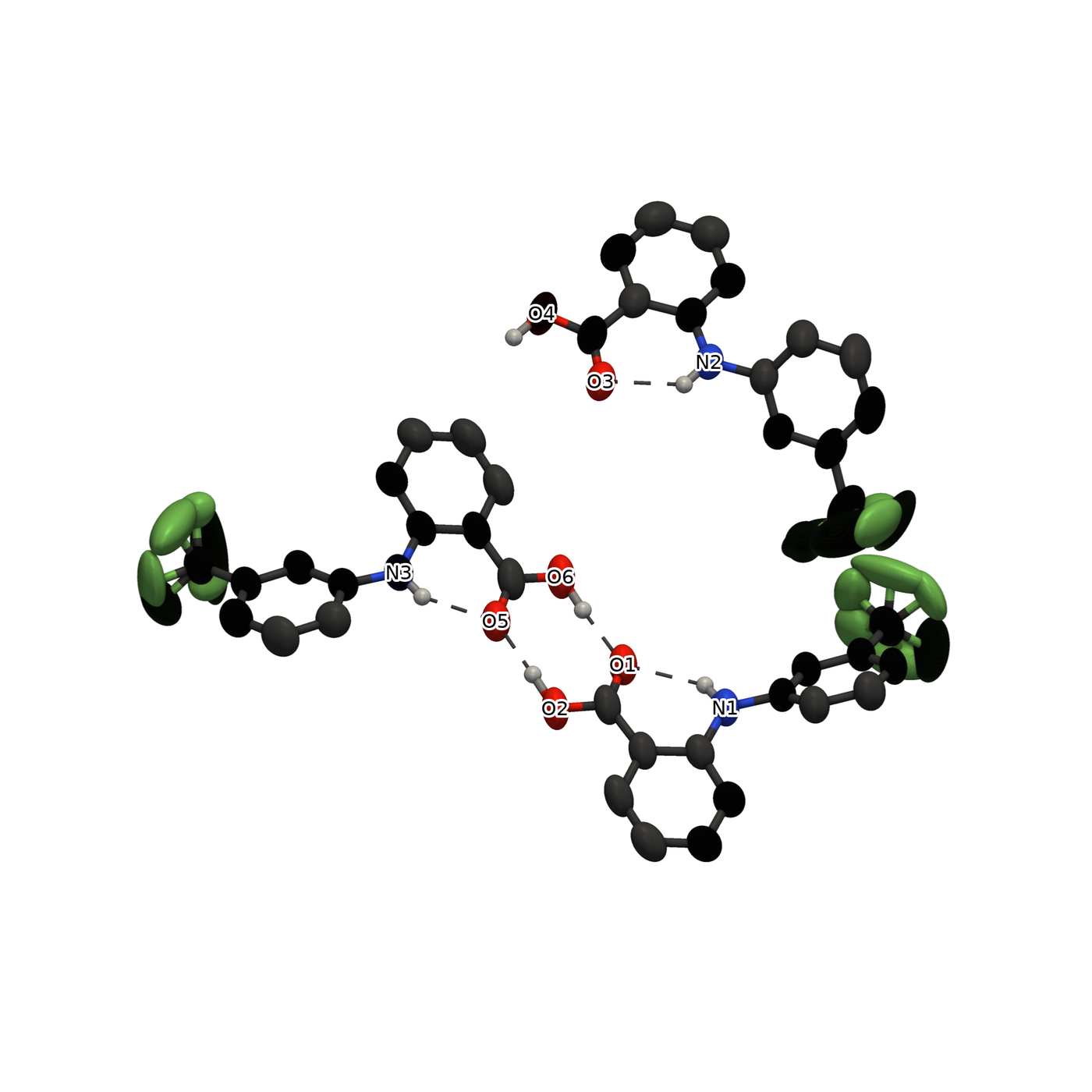

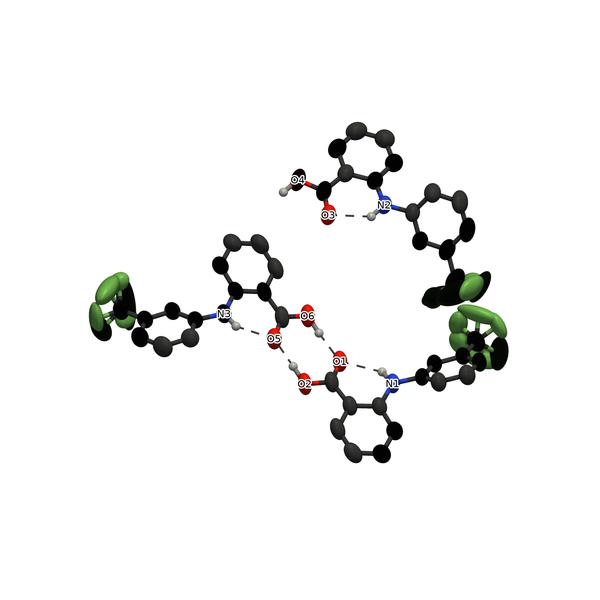

Z′ = 3 with CF₃ disorder groups honoured: no bonds between mutually exclusive sites

Z′ = 3 with CF₃ disorder groups honoured: no bonds between mutually exclusive sitesData: Flufenamic acid, COD 4118081Made by skill_validation/crystal/test_ellipsoid.py

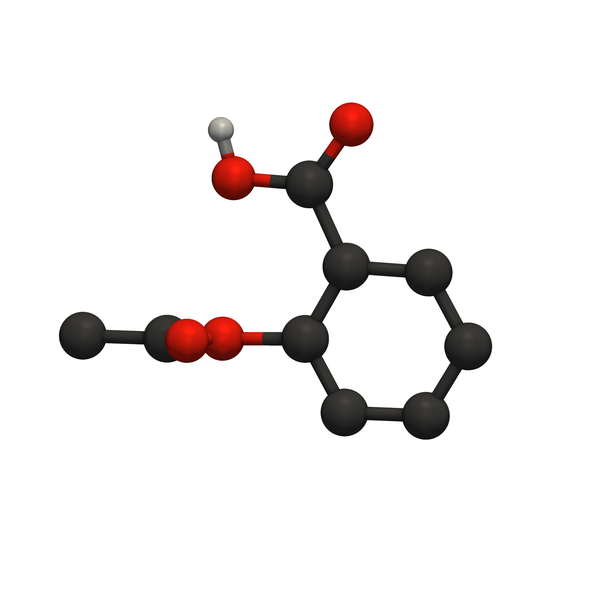

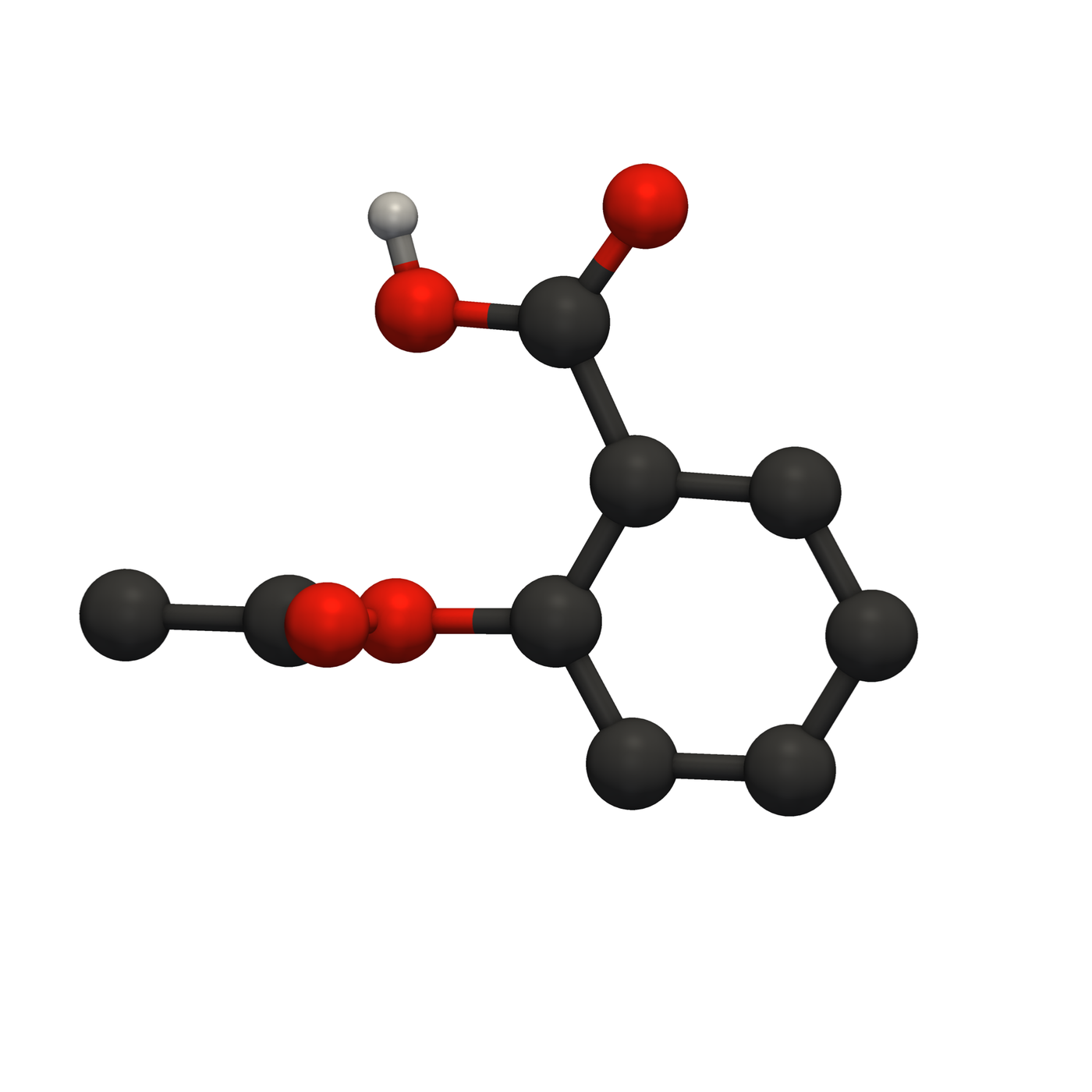

PyVista/VTK still: real depth buffer, ambient occlusion, orthographic camera from the same orientation engine

PyVista/VTK still: real depth buffer, ambient occlusion, orthographic camera from the same orientation engineData: Aspirin, COD 7247819Made by skill_validation/crystal/test_pyvista.py

Every tile is produced by docs/build_gallery.py from public data and public CIFs — nothing is drawn by hand and nothing is synthetic. Repository · MIT licence.
